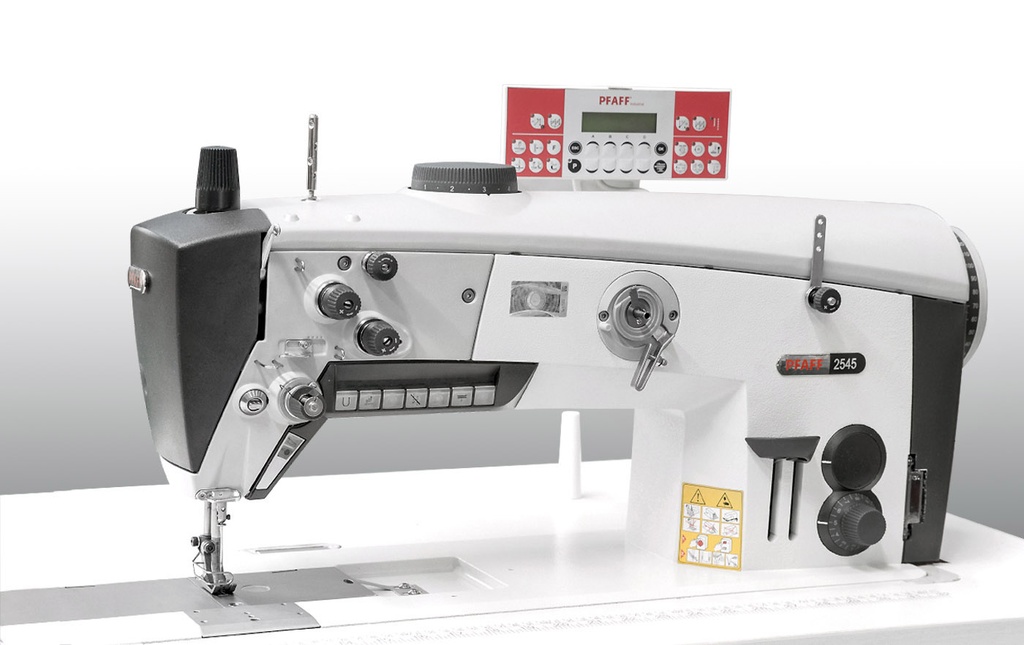

PFAFF 2545 Eco
Reduced electronics where they are needed and easily accessible functional parts make the POWERLINE ECO an uncomplicated, robust and service-friendly machine. It produces consistently high stitch quality and top sewing results both for top-stitching work in the visible area and for assembly and securing seams in the invisible area.
Reduced electronics where they are needed and easily accessible functional parts make the POWERLINE ECO an uncomplicated, robust and service-friendly machine. It produces consistently high stitch quality and top sewing results both for top-stitching work in the visible area and for assembly and securing seams in the invisible area.
Features
- The machine achieves a very high stitch quality both for top-stitching work in the visible areas and for securing and assembly seams
- The ergonomically designed dials guarantee quick and accurate adjustments of the first and second top feed stroke (with automatic speed adaption)
- Quick button for reverse sewing or backtacking
- Large clearance under machine arm (345.0 x 120.0 mm)
- Bobbin winder for a secure and fast start of the winding process („winding assistant“)
- Increased performance due to additional functions like integrated second stitch length, additional thread tension and quick stroke adjustment
- Direct drive
- BDF-S4 Control panel
Specifications
| Performance | |
|---|---|
| Max. sewing speeds | 3000/min |
| Dimension | |
|---|---|
| Max. stitch length | 9 mm |
| Clearance under the sewing foot | max. 9 |
| Thread size | up to 15/3 Nm |
| Systemparameters | |
|---|---|
| Needle system | 134-35 |
| Stitch type | 301 (Lockstitch) |
