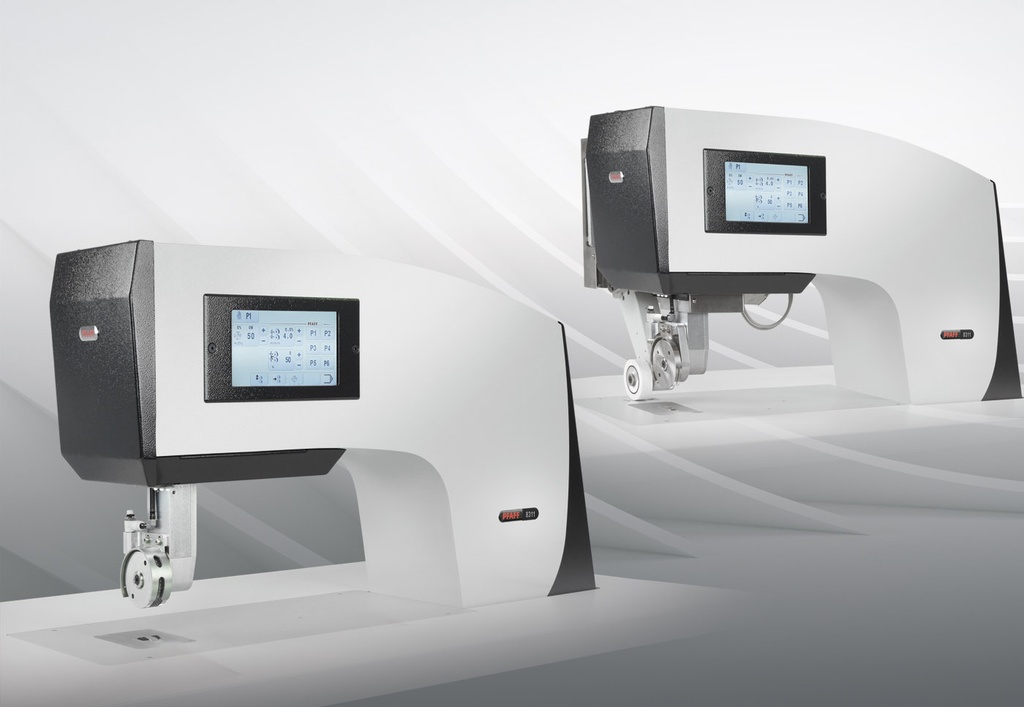

PFAFF 8311

New Ultrasonic welding machine with continuous welding force monitoring

Typical field of application:
Technical section:
Filter bags, health care articles, medical mattresses and pillows, needle felts, operations sheets, foils, bullet proof vests, blinds and awnings, pleated filter, shower curtains, spacer fabrics, seat covers, MBR-modules and many more
Garment section:
Outdoor garment, tyvek protective clothing, bras, lingerie, medical garment & drapes, softshell a, sport garments, clean-room garments and many more
Automotiver section:
Vehicle interior and insulation item, protective car covers, sunshades and many more

27,757.00 € 27757.0 EUR 27,757.00 €

27,757.00 €

  • Connection voltage
  • Seeling speed
  • Seam width
  • Ultrasonic frequency

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • Unrivaled attribute: Continuous welding force monitoring!
  • ALL welding parameter are measured and regulated “speed, energy AND force”

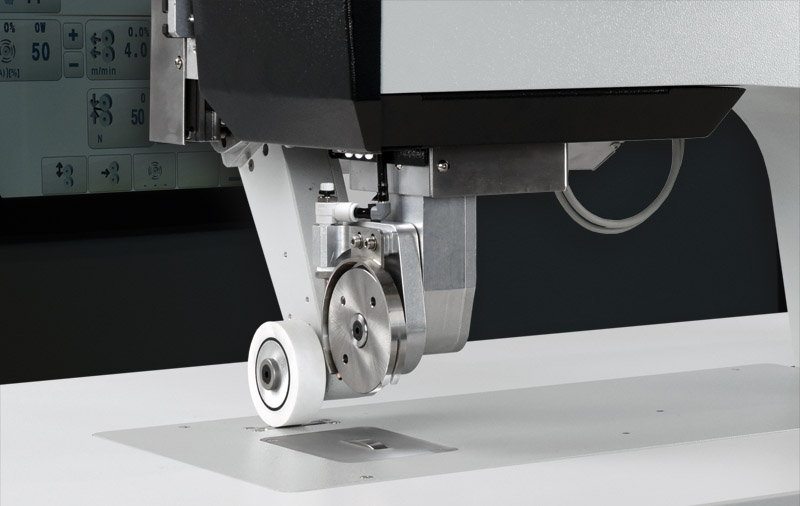

  • Innovative dual roller system: Cutting wheel can be activated by motor
  • New: Versatile platform for various options:
    - motorized puller
    - simple parallel puller
    - lighting from above and below (for lower ply visualization)

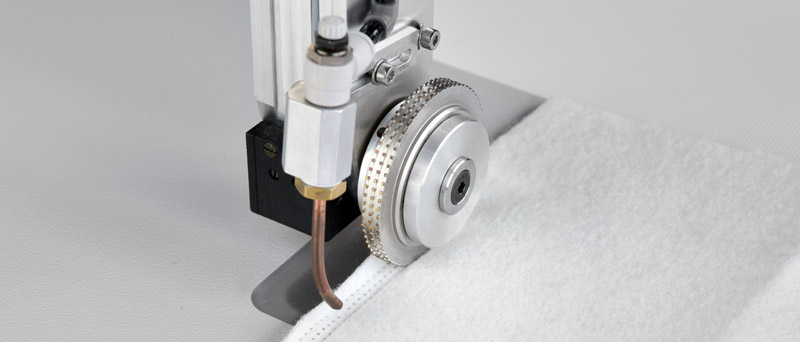

    - seam cooling device (from above and below)
    - cross mark laser for precise start position



Applications

Technical section:
Filter bags, health care articles, medical mattresses and pillows, needle felts, operations sheets, foils, bullet proof vests, blinds and awnings, pleated filter, shower curtains, spacer fabrics, seat covers, MBR-modules and many more
Garment section:
Outdoor garment, tyvek protective clothing, bras, lingerie, medical garment & drapes, softshell a, sport garments, clean-room garments and many more
Automotiver section:
Vehicle interior and insulation item, protective car covers, sunshades and many more



C&S: WELDING + CUTTING = MICROSEAM

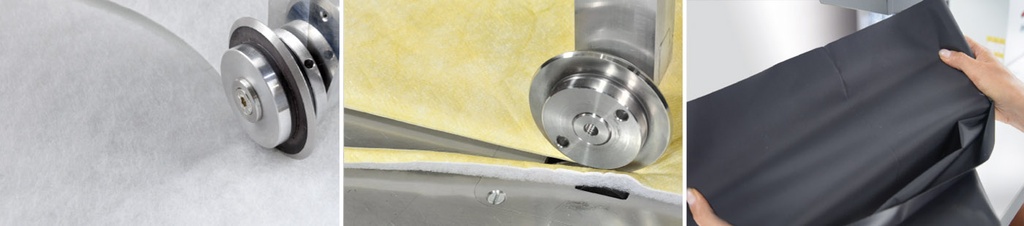

PFAFF 8311-005/001:  Welding and cutting in ONE operation (Cut & Seal) with one wheel (steel sonotrode).  A minimum seam width (micro seam) at high firmness is the key benefit of this solution. The flat seam ensures a high wearing comfort. With that single-wheel solution, the tightest radii and curves can be welded effortlessly. In addition, the microseam can be taped with a taping machine PFAFF 8303 or PFAFF 8330 (depending on the application)


C&S DUAL: WELDING + CUTTING (SHIFTABLE)

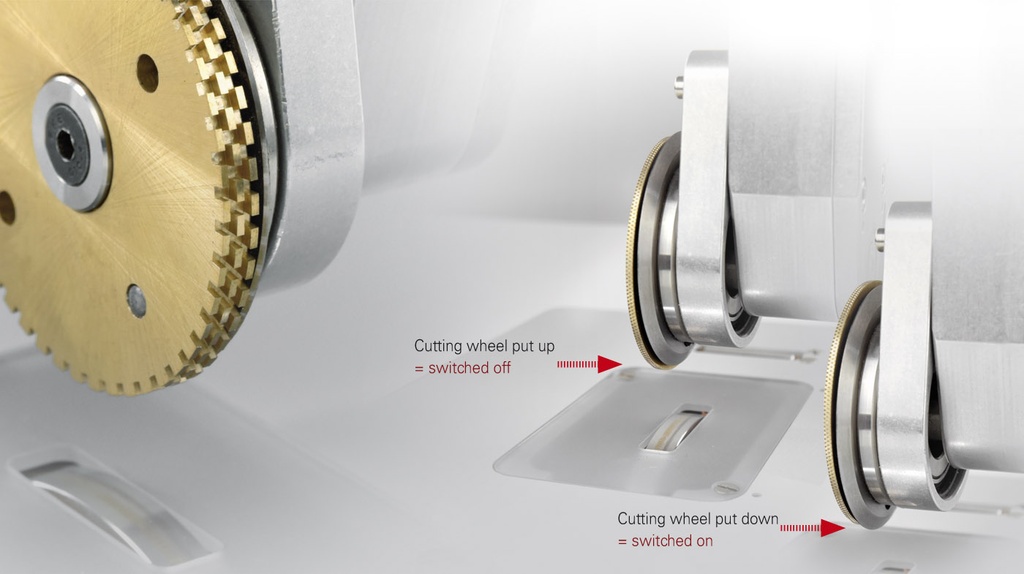

PFAFF 8311-105/001:  Welding and cutting in ONE operation. This double-wheel solution (C&S DUAL)features two anvil wheels (one for cutting and sealing and the other one to realize the second weld seam) on one post, but on separate shafts. With this unique solution the load may be individually adjusted – the two wheels are still running in sync. The machine may be adjusted better and more specifically to the material at hand and increases the process reliability when welding and cutting to weld seams. The minimum distance between weld seam an cutting is around 1 mm. The key feature of this version - the cutting wheel can be switched on and off via the touch control panel.




Specifications

Connection voltage single-phase a.c. 230 V, 50/60 Hz
Seeling speed 0.5 to 10 m/min. option to 20m/min
Seam width 1,0 to 10,0 mm
Ultrasonic frequency 5 KHZ
